TOP DISCHARGE AND PERFORMANCE. Pumps are ideal for dewatering constructions sites, mines, circulating fountain water, or for all around use in industrial plants and utilities.

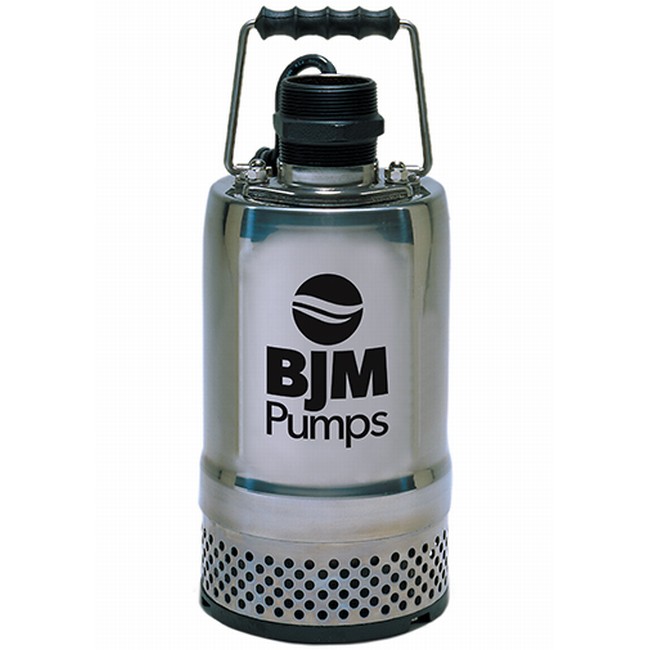

BJM Pump Model No. R250-115

• Top Discharge: allows for superior cooling of motor and provides a slim line design.
• Longer Power Cord: Standard 33ft. power cord on pumps ½ HP and below and 50ft. on pumps 1HP and above.
• 304SS Motor Housing: Superior abrasion resistance will not wear out like aluminum motor housings when pumping sandy water.
• Three Seal Motor Protection: Motor is protected by double mechanical seals. Lower seal made of silicon carbide/silicon carbide and upper seal is made of carbon/ceramic*. An additional lip seal has been installed above the impeller, to help prevent abrasives such as dirt, silt or sand, from entering into the seal chamber.
• More Motor Protection: Winding protection and (NEMA) Class F motor insulation allows motor temperature to raise to 230°F, superior to pumps with Class A and B insulation. Automatic switch turns pump motor off if temperature and/or amp draw raises too high. When the motor cools the switch will automatically reset and the pump will turn back on.
• Tough Pump Construction: Hardened cast iron stands up to rough handling and pumping sandy water unlike pumps with soft resin impellers or plastic exterior components*.

Flow Sheet
