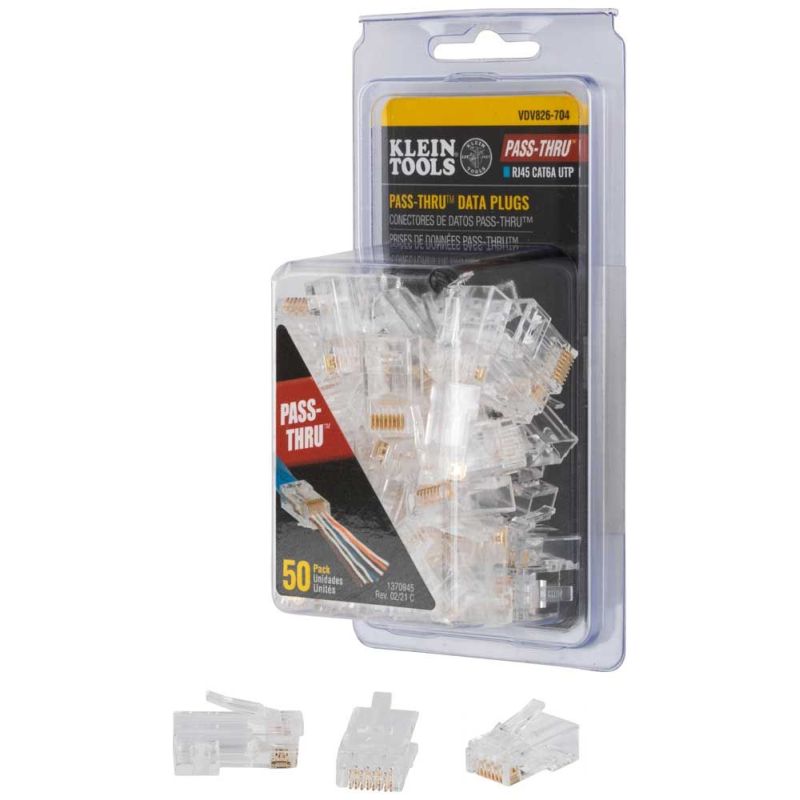

Klein Tool Pass-Thru Modular Data Plug RJ45-CAT6A 50-Pack Un-Shielded (UTP)
Klein Tool Pass-Thru Modular Data Plug RJ45-CAT6A 50-Pack Un-Shielded (UTP)
Price
$31.99
Product Code:
T25256
Quantity in Basket:
None
Availability
Out of Stock
Sorry, we are currently sold out of 'Klein Tool Pass-Thru Modular Data Plug RJ45-CAT6A 50-Pack Un-Shielded (UTP)'. Please check back later.
Notify me when back in stock
Product Description
Exclusive Klein-designed CAT6A Pass-Thru modular plugs for fast, reliable connector installations for data applications. Cable easily passes through connector for consistent and secure termination. Saves time, trims flush to end face when used with Klein Tools Pass-Thru Modular Crimper Cat. No. VDV226-110, and eliminates wasted materials.
Klein Tool Model No. VDV826-704
Klein exclusive Pass-Thru™ Connectors provide fast, reliable connector installations for data applications
For CAT6A cable as well as larger diameter/thicker jacket CAT6 cable
CAT6A cable easily passes through connector to visually ensure that wires are in the correct order for consistent and secure terminations
Fully compliant with Power Over Ethernet (PoE and PoE+) standards

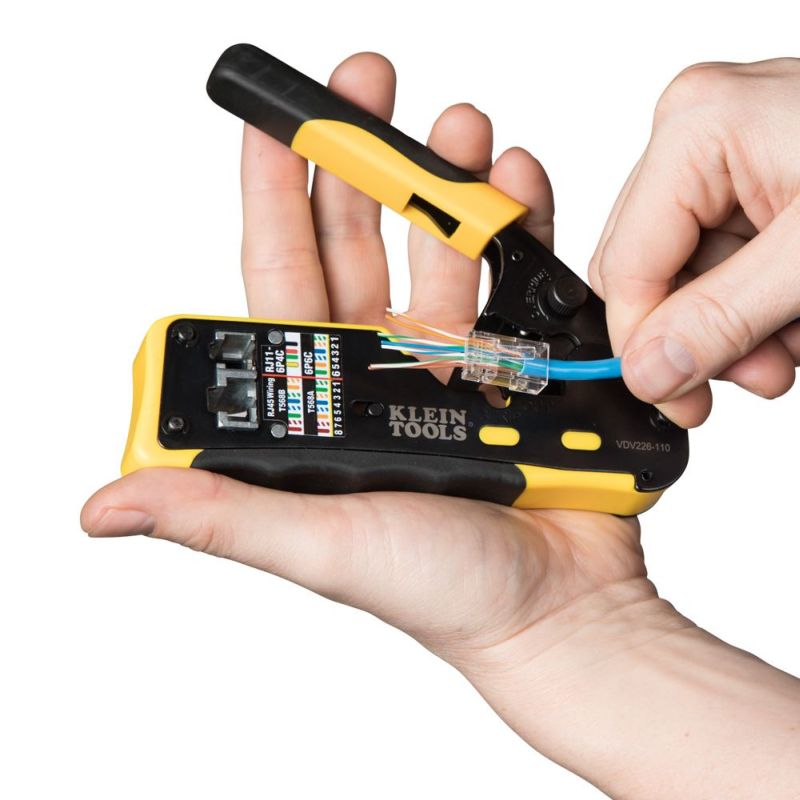

Requires pass-through type crimping tool (Cat. No. VDV226-110 recommended)

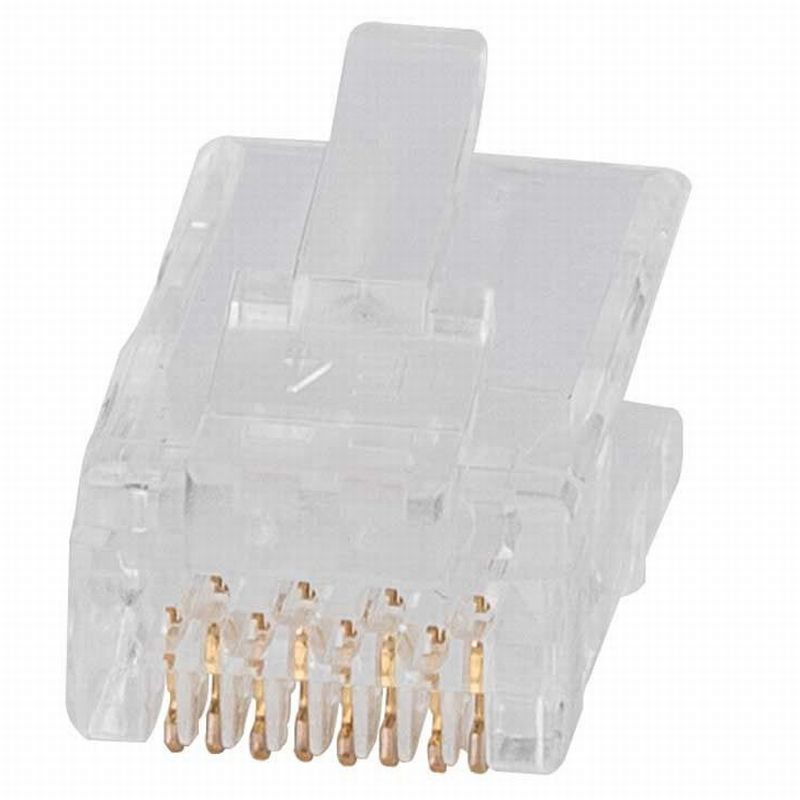

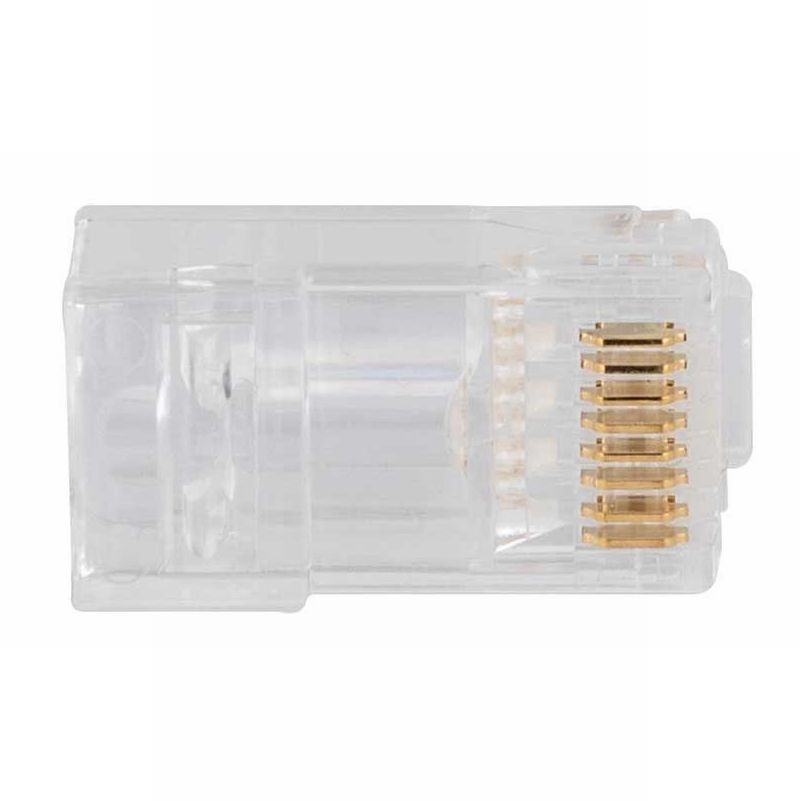

8 position, 8 contact pass-through type data plugs for solid or stranded wire
Category 6A performance per TIA/EIA-568-B.2
50-Pack
50 µ-inch gold plating on all contact surfaces
Max diameter for CAT6A Pass-Thru™ Connectors is 0.043-Inch (1.01 mm)
