Knipex Electrician Installation Pliers is a 6-in-one tool that can cut cable, strip and crimp end sleeves, grip flat and round material, bend and deburr. This tool can do it all save room in your tool box for other tools.

The Knipex New England-style lineman's pliers feature a high leverage design that requires 40 percent less effort compared to conventional combination pliers. It offers a cable puller in the joint gap and with universal mandrel crimping point below the joint. The cross-hatched serrated gripping zone provides firm gripping and pulling (such as for fencing applications).

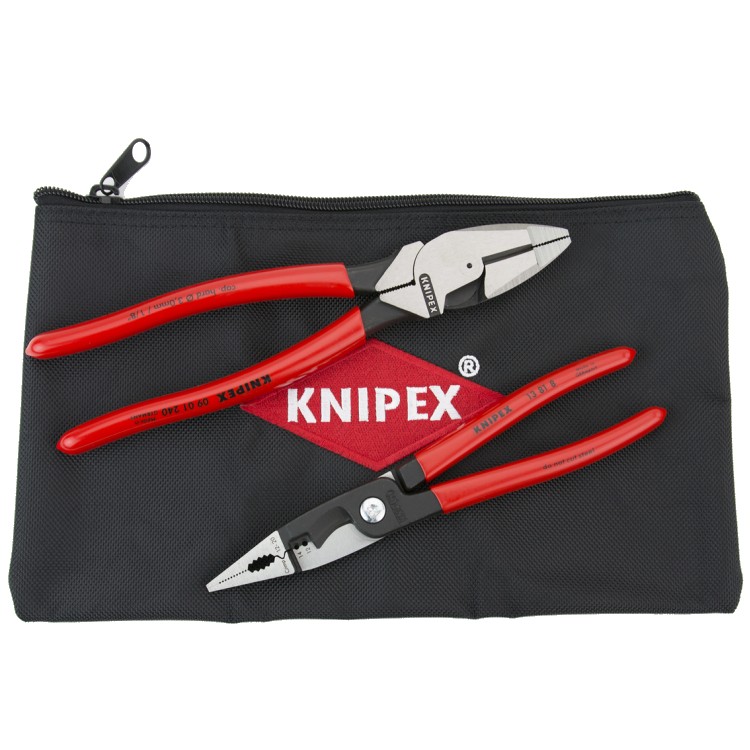

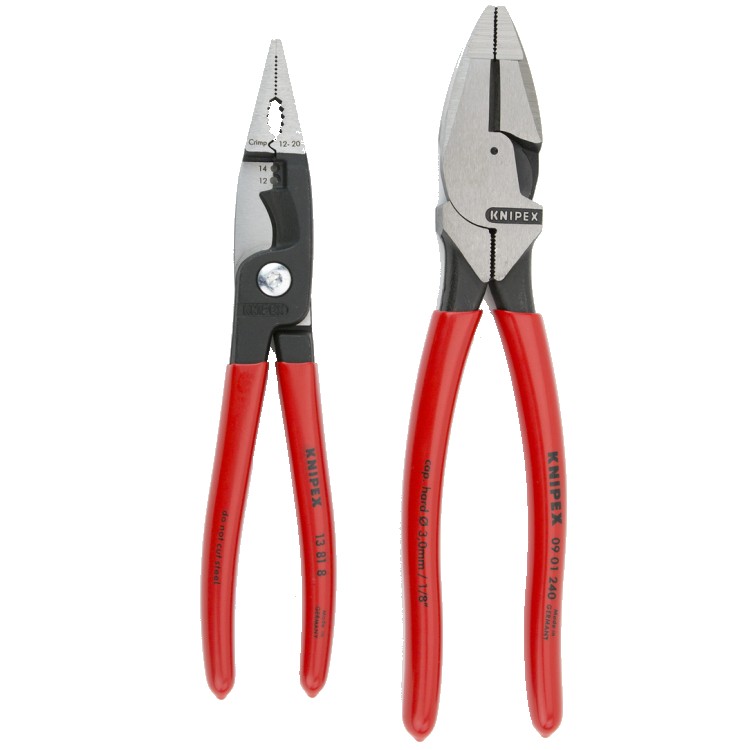

Knipex Tool Kit Model No. 9K 00 80 130 US

• Knipex Electrician Installation Pliers Model No. 13 82 8

  • Multifunctional pliers for the electrical installation; to grip flat and round material, for bending, deburring, cutting cable, stripping and crimping end sleeves (ferrules)
  • Smooth surfaces near the tips grip single conductors without damaging them; serrated gripping surfaces and pipe grip for gripping flat and round material
  • Clear-cut outside edge on the jaw for working on flush-mounted junction boxes and deburring feed-through holes
  • Stripping holes for 12 + 14 AWG (0.75 - 1.5 mm and 2.5 mm)
  • Crimp die for end sleeves (ferrules) 12 - 20 AWG (0.5 - 2.5 mm)
  • Cable shears with (induction-hardened) precision cutting edges for copper and aluminium cables up to 19/32" dia. (5 x 2.5 mm / dia. 5 mm)
  • Slim dimensions for easy access
  • Bolted joint: precise, zero-backlash operation of pliers
  • High-grade special tool steel; forged, oil-hardened
  • Made in German

• Knipex New England-Style Lineman's Pliers Model No. 09 02 240

  • High leverage design requires 40% less effort compared to conventional combination pliers thanks to optimised transmission ratio
  • Ergonomically optimized handle shape for firm contact to the hand and fatigue reducing operation
  • Effective cross-hatched knurled gripping zone in the jaws - for strong gripping and pulling
  • Additional serrated gripping zone below the articulated joint for powerful leverage
  • Cutting edges for soft and hard
  • Cutting edge hardness approx. 64 HRC
  • Vanadium electric steel; forged, oil-hardened
  • Made in Germany



  Capacities for medium hard wire	3/16 Inch / 4.6 mm
  Capacities for hard wire	1/8 Inch / 3.0 mm
