Job Site Proven

Tough, Rugged, and Durable! Oztec's design has been extensively tested and used on-the-job for over thirty years. The wrap around protective frame and shock absorbers effectively protect Oztec motors from damage even when dropped or thrown from heights of over six feet.

Oztec Electric motors are manufactured to exacting specifications to withstand the rough day to day abuses associated with construction sites. Lightweight, compact and fitted with our comfortable adjustable shoulder strap, this one man power unit will speed through the stiffest concrete. All Oztec Power Units (gas and electric) run vibrator heads 11,000 to 12,000 vpm. They never drop below 10,000vpm even in the lowest slump concrete (near 0) when maximum head size specifications are followed.

Oztec power units come standard with the Quick Disconnect "QD" system. Changing shafts and heads on the job is a snap.

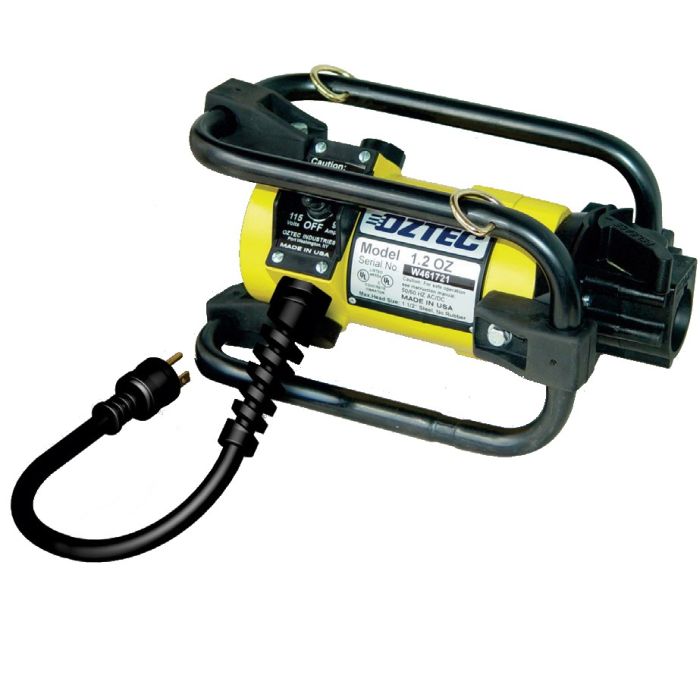

Oztec Model No. 1.2 OZ

• Withstands drops of hights over 6 feet
• Motors are manufactured to exacting specifications to withstand the rough day to day abuses
• Runs vibrator heads 11,000 to 12,000 vpm
• Comes standard with the Quick Disconnect "QD" system
• 1.25 HP Electric motor draws 9 amps
• Maximum Head Size 1.5" Steel
• Oztec units meet all United States OSHA and Canadian safety standards

Heads and Shafts

See the related products below to choose the head and shaft sizes that are compatable with this power unit

Radius of Action

The most important bit of information needed for complete consolidation.
Radius of Action is the distance from the center of the vibrator to the outer edge, where complete consolidation takes place (see diagram).
For quality concrete Oztec lists conservative values for "Radius of Action". Complete consolidation is necessary for low slump concrete with close meshed reinforcement bars, high strength concrete and architectural concrete.
Radius of Action can be twice the listed values when slump is high or super plastisizers are used. It is important these values are used only as a general guide.
