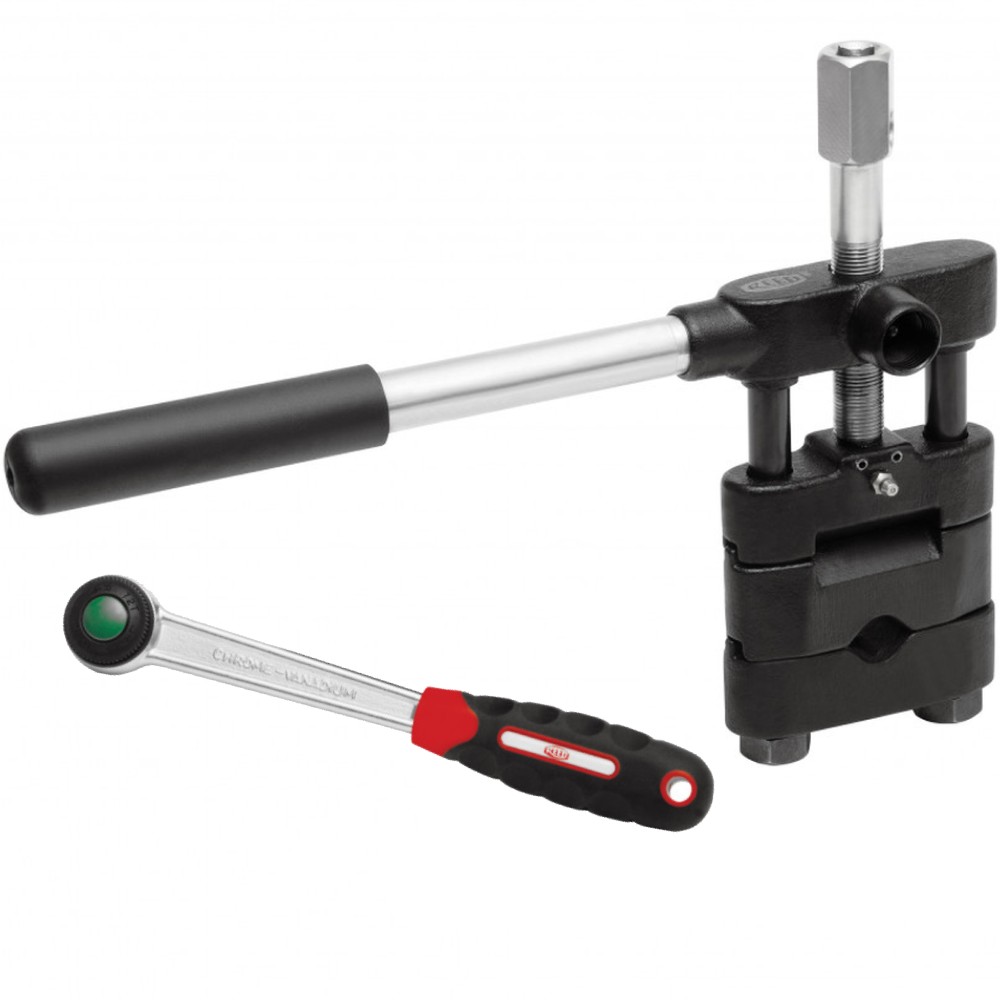

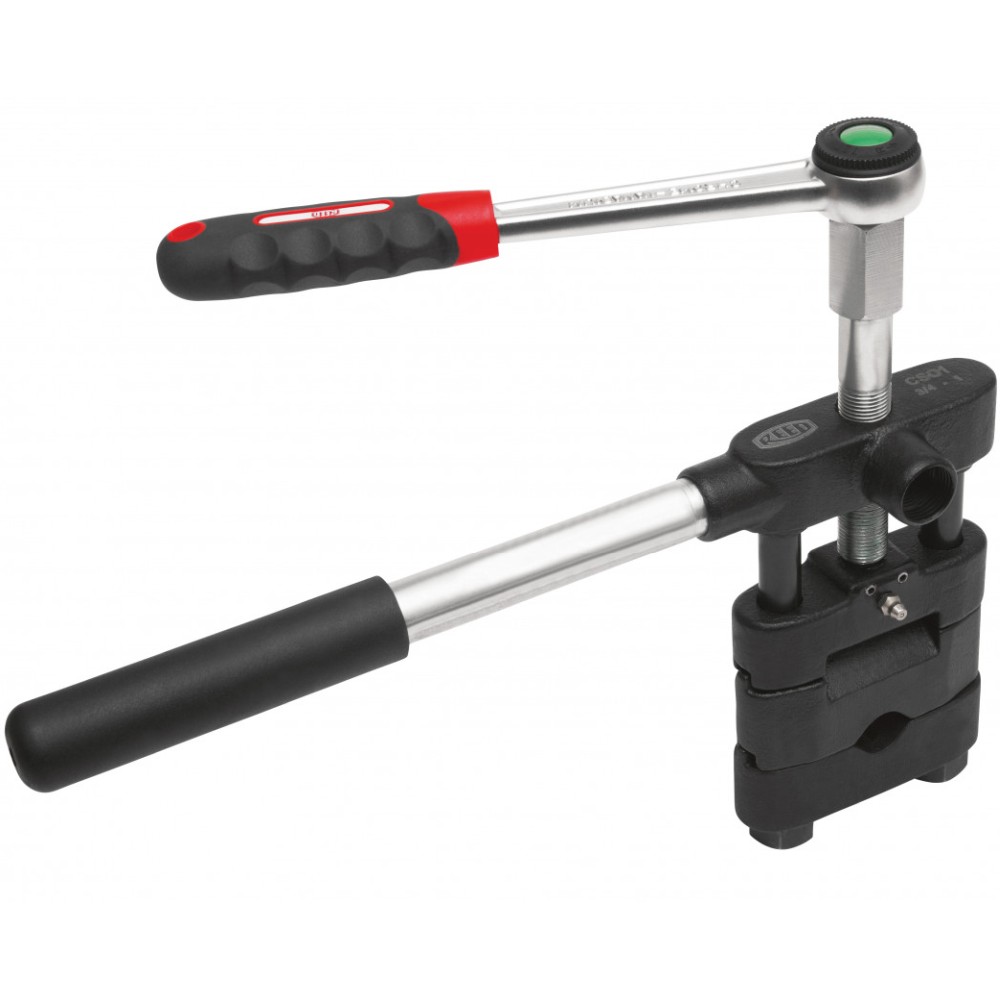

Reed Tool's Copper Shut-Off Tools are designed to shut-off and reshape Type K service line copper tube. The shut-off tool swings open to go handily around the pipe. Fine threads on the feed screw provide smooth, easy tightening using the ratchet drive handle. The support handle can be positioned in two different spots, depending on where there is clearance. The bottom open area of the shut-off tool is used to reround the copper tube after the repair to allow 70-75% return of flow. Generally there is no noticeable flow difference to the customer after the tube is rerounded. All parts are corrosion protected for long service life. Grease fittings for lubrication maintenance yield long tool life and easy operation.

Reed Tool Model No. CSO1R

• CSO1R shuts-off and reshapes 3/4” – 1” Type K copper tubing.

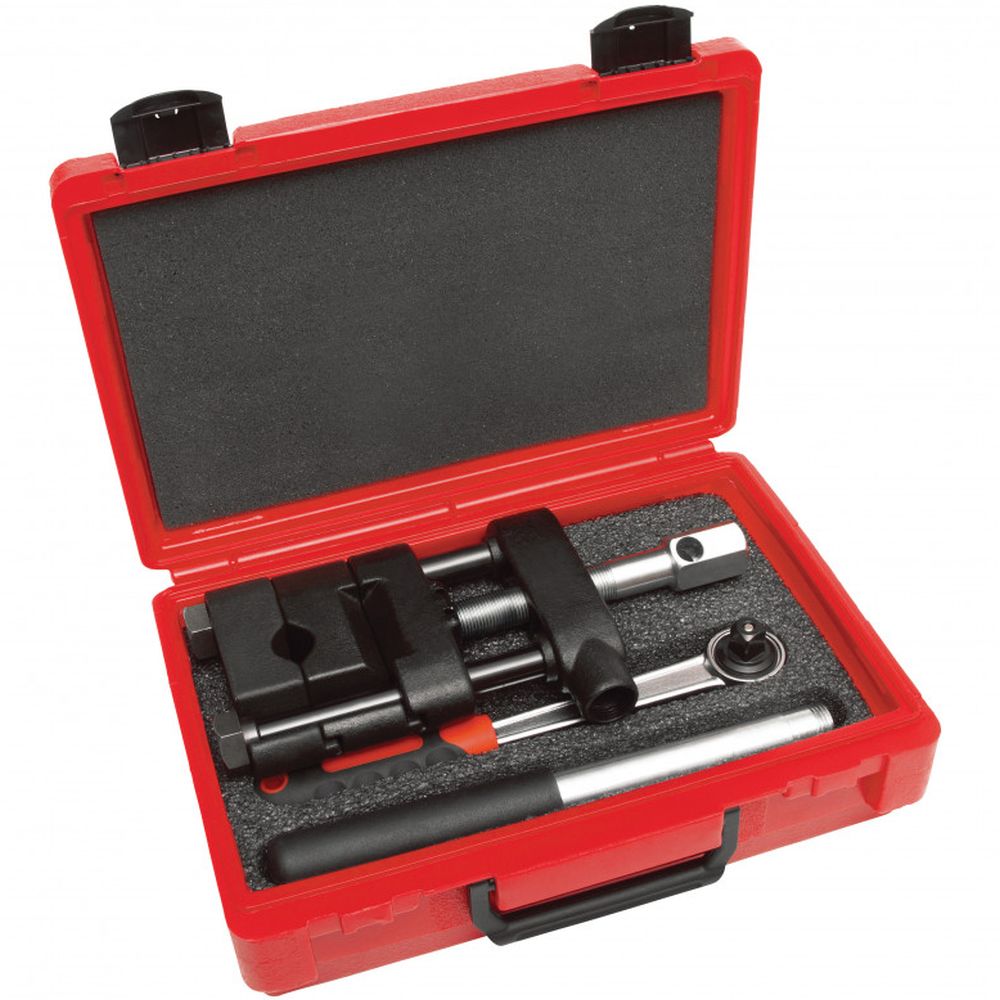

• Redesigned with detachable, ratchet drive handle, Reed’s CSO1R stores compactly in its included, heavy-duty case.
• They are designed only for use on soft copper tube service lines.
• Support handle can be positioned in two different, perpendicular angles for job demands.
• Steel castings provide superior tool strength.
