Compact, Tough and Smart Pipe Lasers

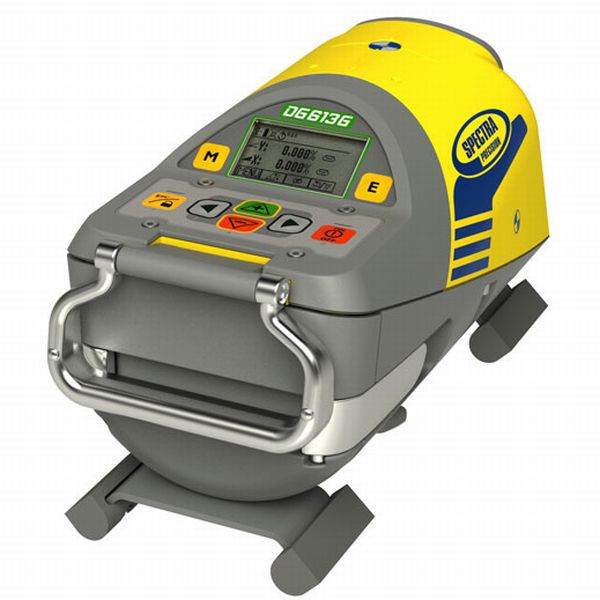

The length of the DG613G has been reduced to make it easier to set up the lasers into tight inverts in the manhole. The DG613G has a grade range from -12% to +40% and is fully self-leveling over the entire grade range. Even the cross axis is fully compensated  - providing quick set up and peace of mind that the laser will be level without having to adjust at the bottom of the invert.

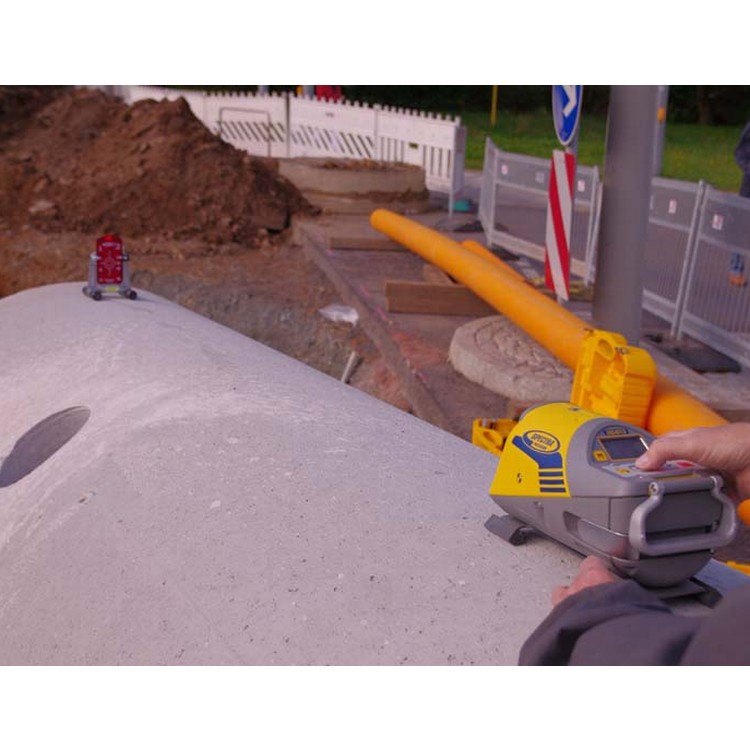

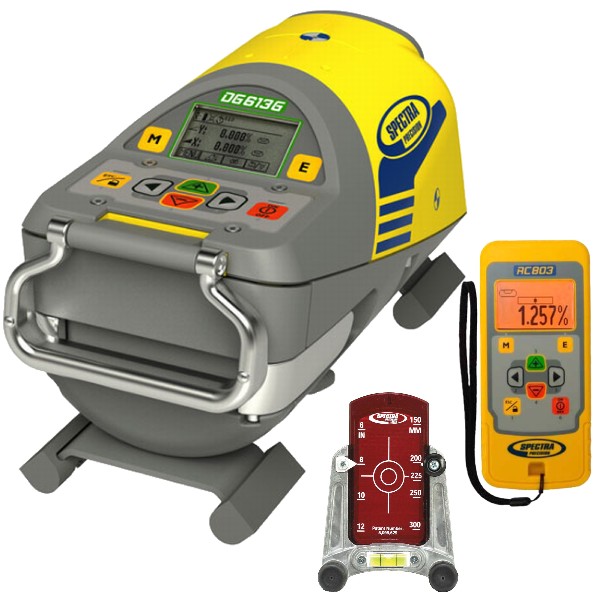

The DG613G works over a distance of 150m (500ft) providing full operation in a single set-up between manholes. The new RC803 remote control provides full function control and utilizes infra-red light in the pipe for up to 150 meter (500 feet) control. For “over-the-top” setups, the remote utilizes radio communications up to a distance of 130 meter (430 feet).

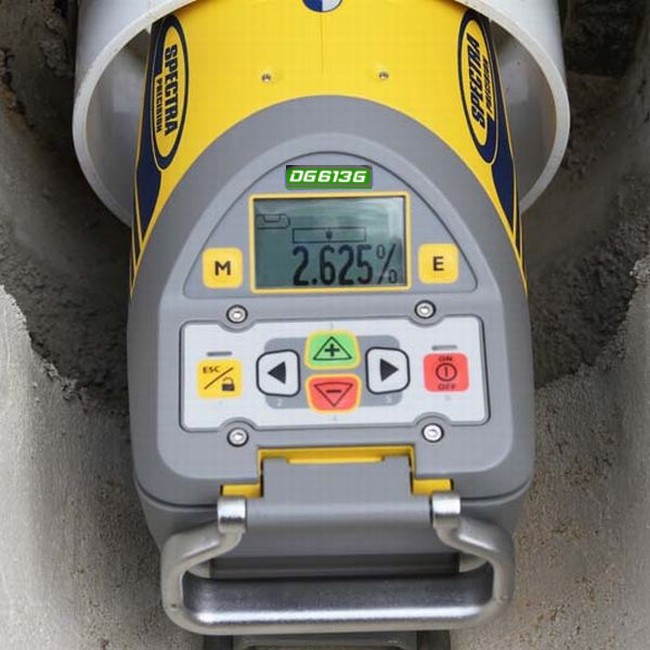

Large graphical user interface can be seen easily when the laser is in a manhole. All functions are available via graphical menu which makes it simple and easy to use – no secret button pressing and short learning curve means it can be handed to anyone in your crew with little or no training. The same graphical user interface is used at the RC803 remote control.

The DG613G has a bright beam that can be easily spotted in the pipe and enhanced with the patented target that bends the beam upwards making it easy to see when looking down at the pipe reducing the need to bend down to see the beam when in the trench or standing above the trench. Multiple attachments are available allowing the DG613G to be mounted in pipes of any size from 150mm (6 inch) upwards. A blower is also available to evenly circulate air through the pipe to avoid refraction of the beam inside the pipe.
