General purpose Construction Laser for Interior and Exterior Applications

The automatic vertican and horizontal self-leveling Spectra Precision HV1305C lasers are the most rugged, cost-effective lasers that provide both horizontal and vertical alignment. Even in harsh jobsite conditions, the lasers deliver consistently reliable and accurate performance, enabling you to work faster and smarter.

The HV1305GC has Bluetooth® built in so they can be controlled with your smartphone with the Spectra Precision Laser Remote App or with the included fully functional RC1402 remote control with a range of 330 ft.

Whether your job is indoors or outdoors, the automatic, self-leveling Spectra Precision HV1305C Horizontal and Vertical Laser is the most rugged laser available, tough enough to handle a wide variety of horizontal, vertical and plumb applications. A split beam enables plumb point transfer and 90 degree layout. Even in brightly lit interior conditions, the high visibility beam of the HV302 delivers consistently reliable and accurate performance, enabling you to work faster and smarter.

The rugged HV1305C laser can withstand drops of up to one meter (three feet) onto concrete and tripod tipovers up to 1.5 meters (five feet). This strength, combined with full weatherproofing and dustproofing, reduces downtime and lowers repair costs over the life of the product.

Combine the HV1305C with the advanced HL760 Digital Readout (DRO) receiver to provide Grade Match, PlaneLok and Fingerprint function.
Grade Match which connects different elevations and establishes a sloped reference over unknown ground. As a consequence it eliminates time consuming manual slope adjustments.
PlaneLok automatically locks on to an existing horizontal elevation or provides quick automaticvertical alignment which eliminates all drift or possibility of error due to improper calibration or weather.
The unique “Fingerprint” function only accepts the beam from the laser it is paired with.

These lasers are designed for commercial and industrial buildings and offer superior accuracy,and distance.

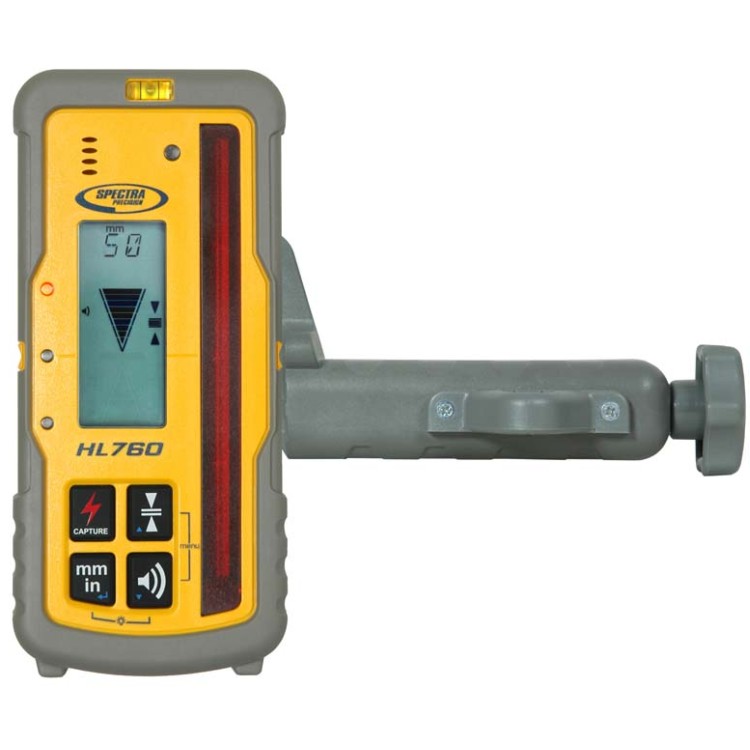

HL760 Digital Read-Out Laser Receiver

Highly versatile laser receiver for basic and advanced leveling and aligning applications

The Spectra Precision Laser HL760 Laserometer digital readout of elevation and fingerprint functionality, the Spectra Precision HL760 provides fast grade checking and accurate laser readings. This advanced laser detector includes all the functions of the HL760 with the addition of grade matching and PlaneLok capabilities with the new Spectra self-leveling and grade lasers.

The HL760 digital readout receiver enables Grade Match and PlaneLok features when working with the HV1305C. Grade match slopes the laser automatically to match the fall between two elevations, while PlaneLok is available in both horizontal and vertical planes and automatically locks the beam on the receiver and keeps it on-grade.

The HL760 has a unique fingerprint feature that reduces connection errors and conflicts on jobsite's where more than one laser is being used. Once paired with the construction laser, the HL760 only accepts the beam from the laser it is paired with.

The HL760 has an IP67 rating, the HL760 is dust proof and water resistant. It can withstand a drop of up to 10 feet high onto concrete and operates up to 60 hours using two AA alkaline batteries. It also automatically shuts off after 30 minutes of being idle to save power.

The HL760 shows the exact distance from on-grade on its large front and rear LCDs. It also has six accuracy settings and selectable units of measure are displayed in millimeter, centimeter, feet, inch or fractional inches. In addition, the HL760 can communicate with another HL760 for a longer range, wireless remote display and monitoring.

Instruction Manual

Spectra Laser Model No. HL760

• Fingerprint functionality detects only the laser beam of the paired transmitter
• Digital readout of elevation
• Works with Spectra lasers in automatic Grade Match and PlaneLok applications
• Six accuracy levels
• Anti-strobe sensor to prevent false reading from jobsite strobe lights
• Large reception height to ease beam reception
• Automatic shut off after 30 minutes
• Drop resistant up to ten feet
• LCD screen
• Up to 60-hour battery life
• Water resistant and dust proof to IP-67
• 3-year warranty

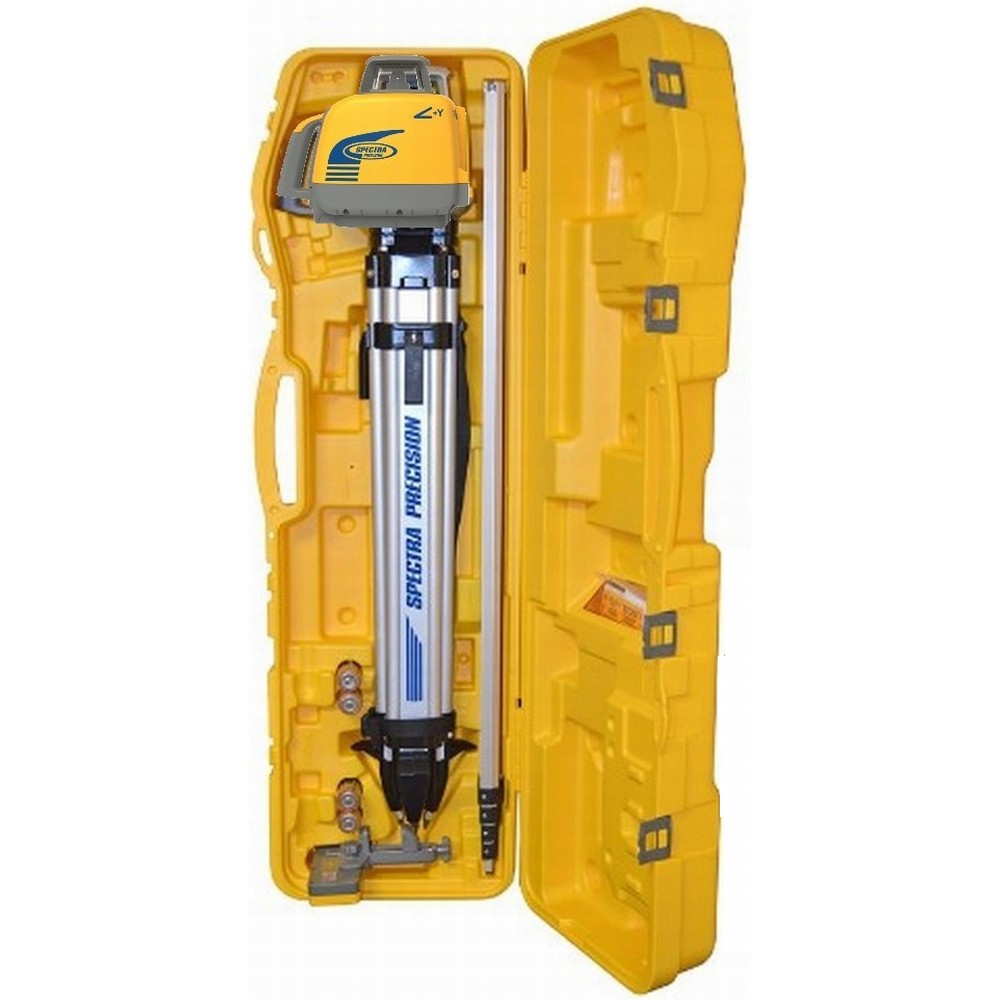

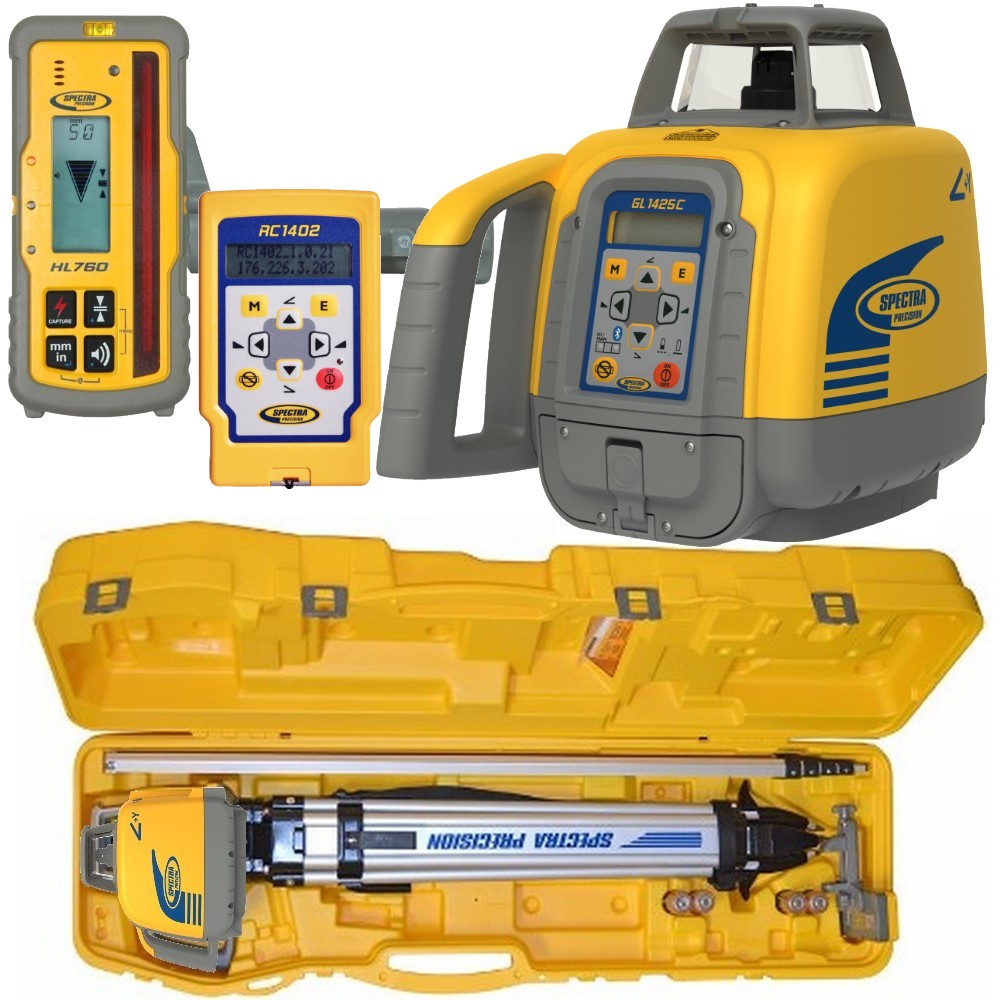

HV1305C-SC-2 Includes:

• HL760 Receiver w/Rod Clamp
• 105516 Vertical Adapter

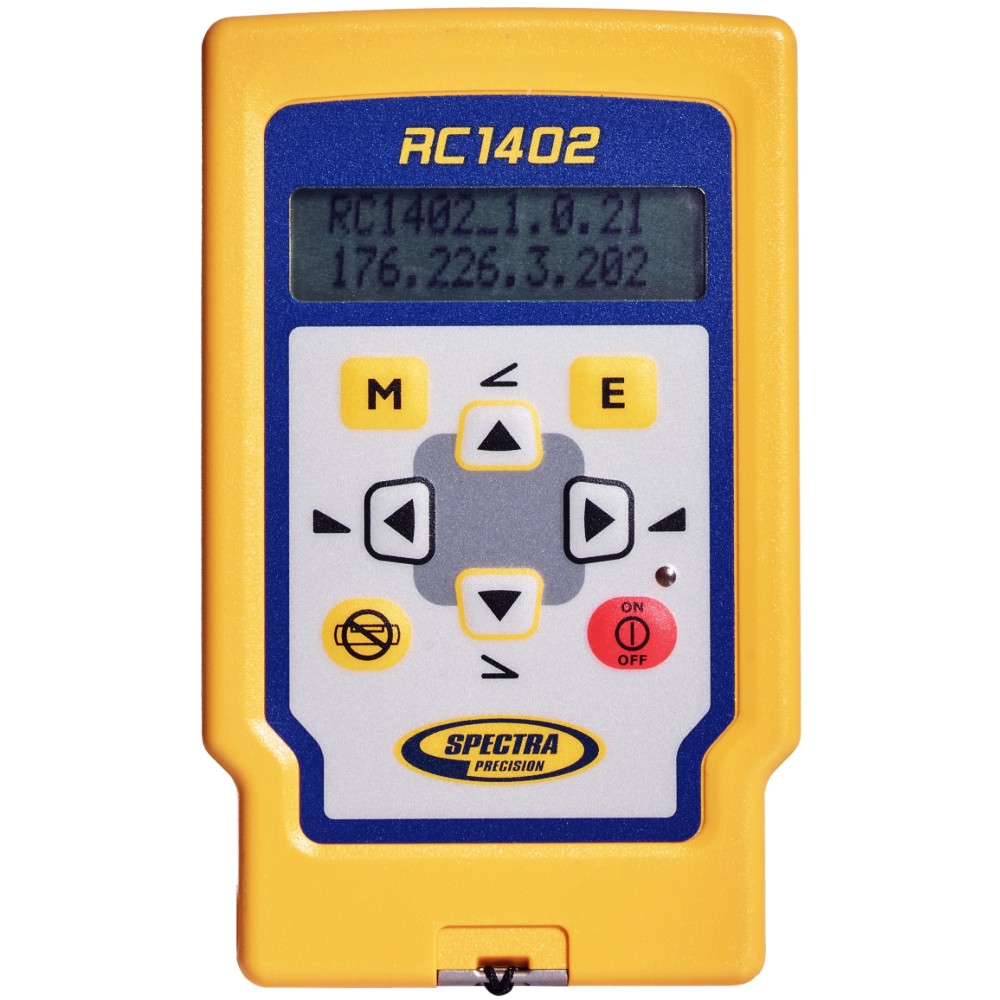

• RC1402 Remote Control
• 10 ah NiMh Batteries
• 110v Worldwide Battery Charger
• Jobsite tough all in one carrying case
• Construction Duty Aluminum Tripod
• 15' 5 Section Grade Rod (Inches)


HV1305C Features & Benefits

• Automatic self-leveling - horizontal & vertical
• Bluetooth connection allows laser control with a smartphone
• High accuracy ±1/16 in at 100 ft (±1.5 mm at 30 m)
• Working range of up to 4,000 ft diameter with HL760 receiver
• Adjustable scan angles concentrate the beam where needed for optimum visibility Angles Preset 5°, 15°, 45° and 90° Adjustable in 5° increments
• Height of Instrument Alert - unit stops rotating when jarred to avoid erroneous readings
• Automatic plumb down beam for quick and easy vertical setup
• Superior electronic pointing for precise control when positioning the beam
• Rotation selection of 0, 10, 100, 200, 300 or 600 RPM
• Power versatility - charge the batteries inside or outside the laser. Alkaline batteries can also be used
• Radio communication between the HL760 receiver and the laser provides automatic Grade Matching and PlaneLok
• 5 Years warranty


User Benefits

• Simplifies level and vertical alignment setups
• Increases reliability, accuracy and durability
• Energy-efficient design offers long battery life
• Highly durable design able to survive a drop up to 1m (3 feet) onto concrete
• Remote control or remote control app allows operation of all laser functions from anywhere on the jobsite
