General purpose Construction Laser for Interior and Exterior Applications

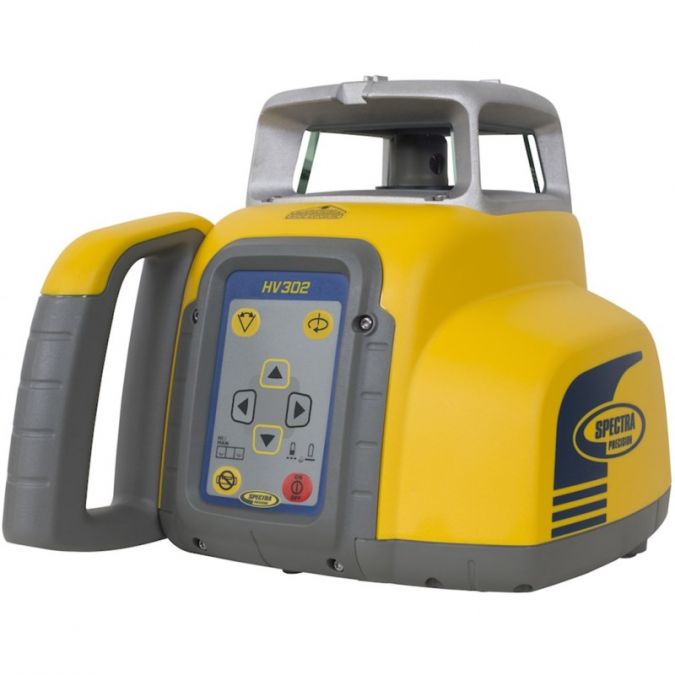

Whether your job is indoors or outdoors, the automatic, self-leveling Spectra Precision HV302 Horizontal/Vertical Laser is the most rugged laser available, tough enough to handle a wide variety of horizontal, vertical and plumb applications. A split beam enables plumb point transfer and 90 degree layout. Even in brightly lit interior conditions, the high visibility beam of the HV302 delivers consistently reliable and accurate performance, enabling you to work faster and smarter.

The rugged HV302 laser can withstand drops of up to one meter (three feet) onto concrete and tripod tipovers up to 1.5 meters (five feet). This strength, combined with full weatherproofing and dustproofing, reduces downtime and lowers repair costs over the life of the product.

Combine the HV302 with the advanced HL760 Digital Readout (DRO) receiver to provide Grade Match, PlaneLok and Fingerprint function.
Grade Match which connects different elevations and establishes a sloped reference over unknown ground. As a consequence it eliminates time consuming manual slope adjustments.
PlaneLok automatically locks on to an existing horizontal elevation or provides quick automaticvertical alignment which eliminates all drift or possibility of error due to improper calibration or weather.
The unique “Fingerprint” function only accepts the beam from the laser it is paired with.

RC402N Remote Control

The HV302 comes with the RC402N Remote Control and features a keypad and backlit LCD with on-screen indicators. With a working rage of up to 330 feet, the RC402N allows construction professionals to perform leveling and slope matching from anywhere on the jobsite.

This Spectra remote control works up to 130 hours using two AA alkaline batteries. It also has an IP66 rating for protection against dust and heavy rain.

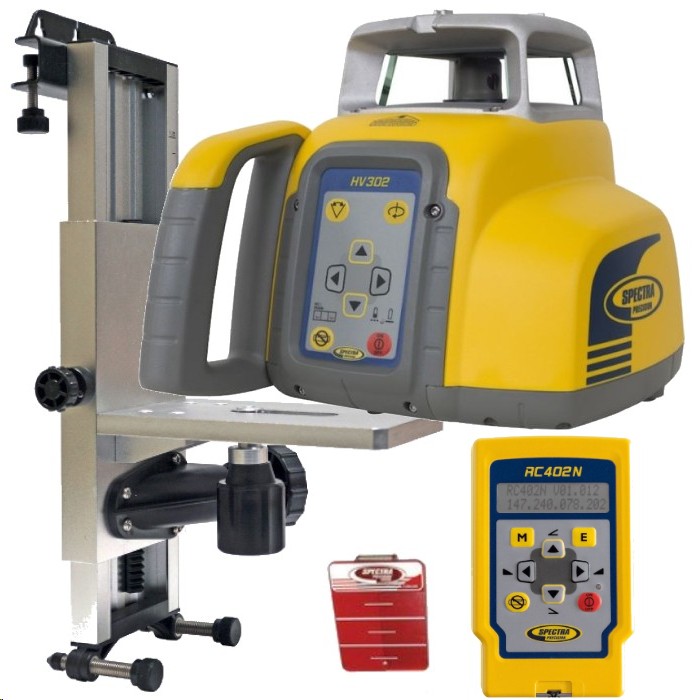

HV302-1 Includes:

• RC402N Remote Control
• Road Clamp
• Wall Mount
• Ni-Cad Batteries
• Battery Charger
• Jobsite tough all in one carrying case

HV302 Features & Benefits

• Automatic horizontal and vertical self-leveling
• Accuracy 1.5mm @ 30 m (1/16 inch @ 100 ft)
• Working range of 800 m (2,600 ft) diameter
• High-visibility beam – easily visible even in brightly lit conditions
• Split beam – enables plumb point transfer and 90-degree layout
• Height of Instrument Alert - unit stops rotating when jarred to avoid erroneous readings
• Long range RC402N Radio remote control
• Radio communication between the HL760 DRO receiver and the laser provides automatic Grade Matching and PlaneLok
• “Fingerprint” function of the HL760 DRO receiver only accepts the beam from the laser it is paired with
• Extremely durable and portable
• 5 Year warranty
