Highly versatile laser receiver for basic and advanced leveling and aligning applications

The Spectra Precision Laser HL760U Laserometer digital readout of elevation and fingerprint functionality, the Spectra Precision HL760U provides fast grade checking and accurate laser readings. This advanced laser detector includes all the functions of the HL760U with the addition of grade matching and PlaneLok capabilities with the new Spectra self-leveling and grade lasers.

The HL760U digital readout receiver enables Grade Match and PlaneLok features when working with the HV302G Green Beam lasers. Grade match slopes the laser automatically to match the fall between two elevations, while PlaneLok is available in both horizontal and vertical planes and automatically locks the beam on the receiver and keeps it on-grade.

The HL760U has a unique fingerprint feature that reduces connection errors and conflicts on jobsites where more than one laser is being used. Once paired with the construction laser, the HL760 only accepts the beam from the laser it is paired with.

The HL760U has an IP67 rating, the HL760 is dustproof and water resistant. It can withstand a drop of up to 10 feet high onto concrete and operates up to 60 hours using two AA alkaline batteries. It also automatically shuts off after 30 minutes of being idle to save power.

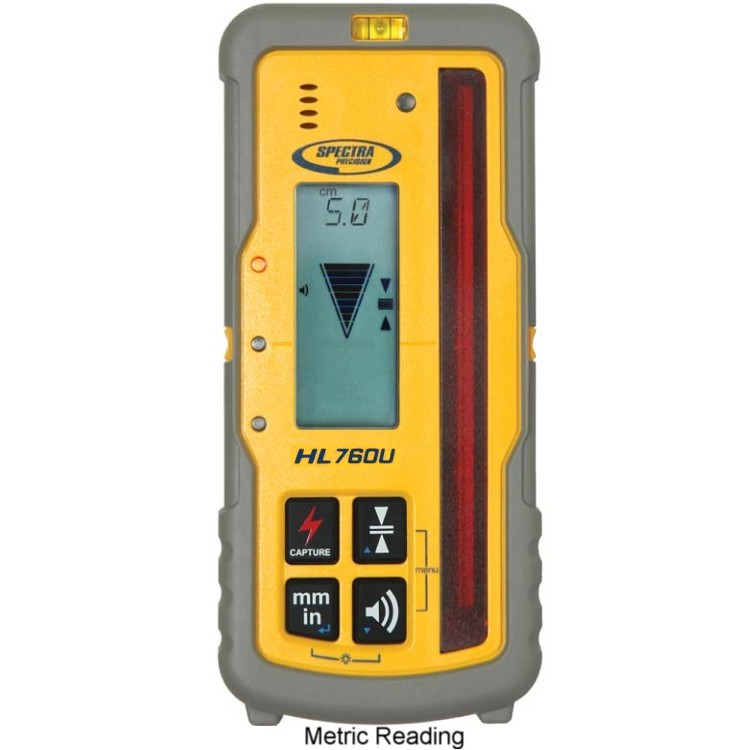

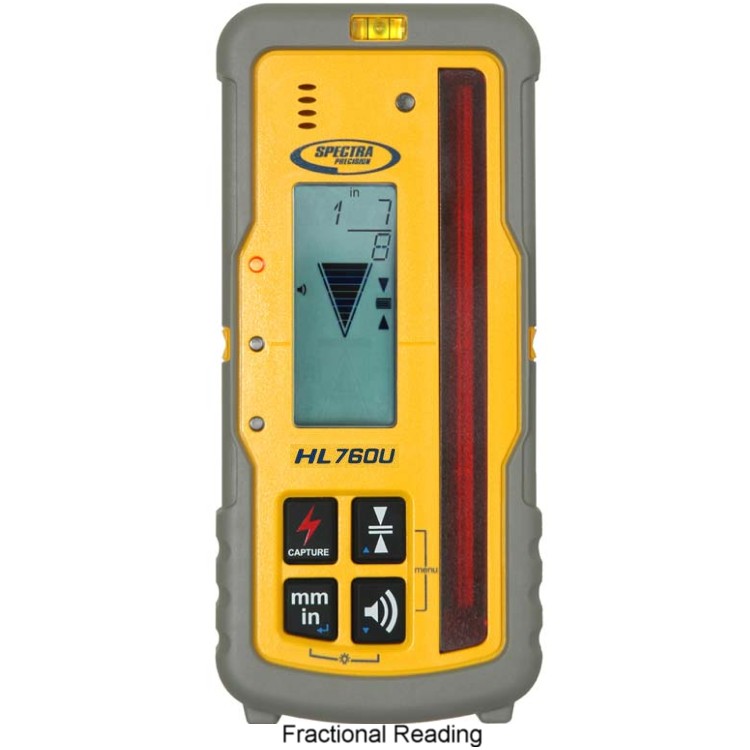

The HL760U shows the exact distance from on-grade on its large front and rear LCDs. It also has six accuracy settings and selectable units of measure are displayed in millimeter, centimeter, feet, inch or fractional inches. In addition, the HL760 can communicate with another HL760 for a longer range, wireless remote display and monitoring.

Instruction Manual

Spectra Laser Model No. HL760U

• Fingerprint functionality detects only the laser beam of the paired transmitter
• Digital readout of elevation
• Works with Spectra lasers in automatic Grade Match and PlaneLok applications
• Six accuracy levels
• Anti-strobe sensor to prevent false reading from jobsite strobe lights
• Large reception height to ease beam reception
• Automatic shut off after 30 minutes
• Drop resistant up to ten feet
• LCD screen
• Up to 60-hour battery life
• Water resistant and dustproof to IP-67
• 3-year warranty
