Rugged 360-degree Laser Display Receiver with Patented Angle Compensation Indicator

The Spectra Precision® Laser LR60W Laser Display Receiver is designed to be used as a stand-alone display receiver on grading and excavating equipment including: dozers, excavators, backhoes, scrapers, and box blades. For excavators and backhoes, the LR60W laser receiver features patented Angle Compensation which automatically calculates and corrects the grade display for the angle of the dipper arm.

The easy-to-use LR60W features versatile 360-degree laser reception and works with all types of rotating lasers on all types of machinery for fast, no-hassle setup. Rugged and waterproof, the LR60 receiver withstands all weather environments.

Spectra Precision® Laser Display Systems let you spend less time walking the job site … and more time in the cab being productive. Using a grade display receiver guides the operator to the desired elevation or depth without a grade checker, you improve accuracy and increase profits. The operator optimizes machine time, effectiveness, and efficiency. You can use these rugged, highly flexible laser display systems on a wide range of machines. The receivers are portable and easily moved from machine to machine for greater operator and machine efficiency.

LR60W Used on dozers, backhoes, excavators, and levelers. Features built-in blade tilt, excavator boom plumb indicator plus angle compensation indicator

• Patented Angle Compensation Indicator automatically calculates and corrects the grade display for the angle of the dipper arm.
• Check grade with the dipper arm extended or retracted up to 30 degrees.
• Built-in plumb indicator for fast, accurate grade checking.
• Center On-grade provides an equal amount of grade information above and below on-grade. Use on dozers, graders, scrapers and box blades.
• Offset on-grade for productive excavation.
• Up to nine channels of grade information plus directional out-of-beam indicators.
• Four selectable accuracies for each on-grade location.

The Spectra Precision RD20 wireless in-cab remote display can quickly and easily be positioned in the cab, without cables, to improve visibility. Additionally, most receiver functions can now be controlled in the cab with the remote.
The RD20 remote display links directly with the new family of wireless receivers: LR30W, LR50W and LR60W. The wireless display receivers have all the features and benefits of the conventional receivers and continue to use your existing laser, install in minutes, require no wiring or welding and instantly increase productivity up to 30% on your skid-steer loader, backhoe, excavator, bulldozer and trenching machines.

RD20 Wireless Remote Display Features and Benefits

• Large, bright, Red, Green and Blue elevation LEDs for High, On-grade and Low – colors are easy to distinguish for quick glance elevation location
• Built in speaker provides distinct audible tones for High, On-grade and Low – recognize your grade without diverting your attention from the terrain
• In-cab control setting capability for accuracy and LED brightness change settings for various conditions without leaving the cab
• Additional setting control capability - including plumb indication, blade tilt, laser offset, blade slope match - depending on receiver
• Dual power options - internal battery and machine power - increase up time and productivity
• State of the art radio - prevents interference even when multiple machines are working in the same area
• Multiple mounting systems include bolt-on, adhesive, swivel and suction cup – allows mounting in most convenient location

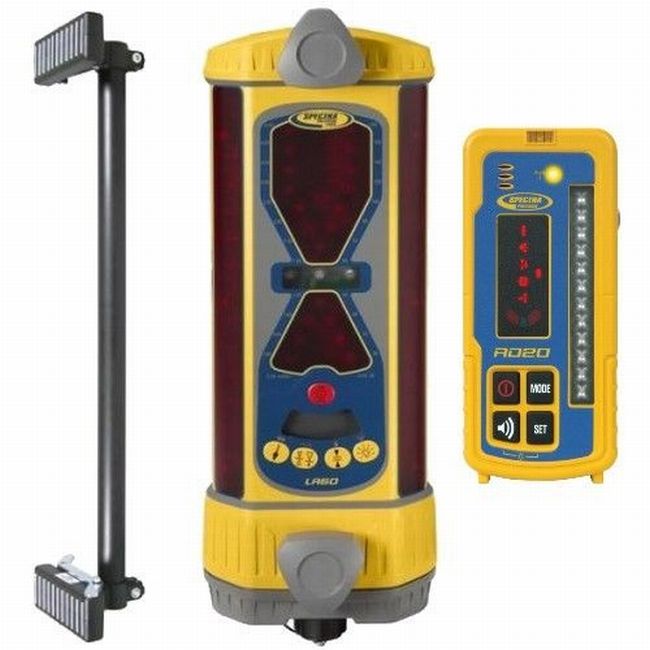

LR60W-MM Includes:

• Jobsite tough carrying case
• NiMH Batteries
• 110v Battery Charger
• RD20 In-Cab Display
• MM-1 Magnetic Mount

Spectra Precision Laser Machine Display Receiver Features and Benefits
