Versatile Automatic Grade Lasers for Level, Grade and Vertical Alignment

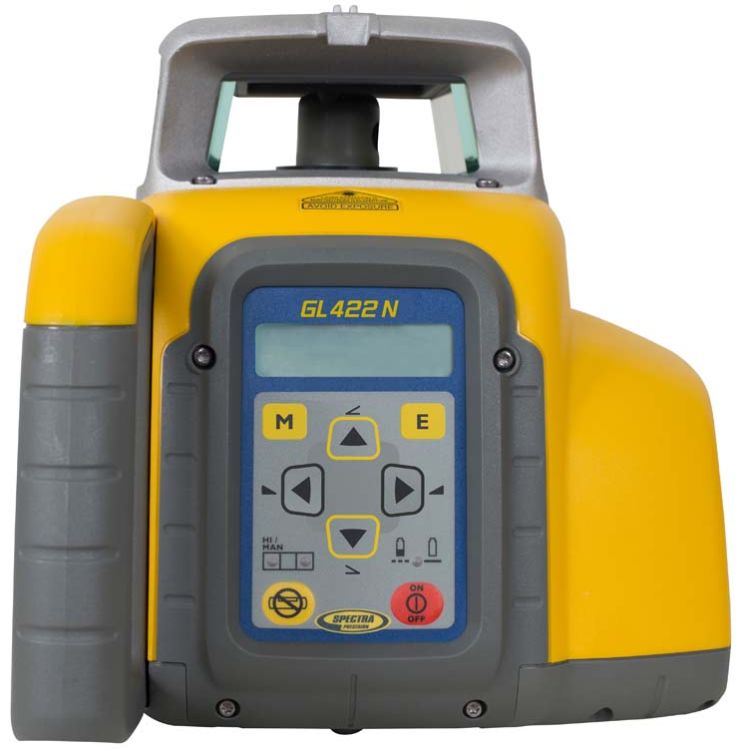

The automatic, self-leveling Spectra Precision® GL422-14N dual grade lasers are the most rugged, cost-effective lasers that do three jobs—level, grade, and vertical alignment. Even in harsh jobsite conditions, the GL412N/GL422N delivers consistently reliable and accurate performance, enabling you to work faster and smarter.

The rugged GL412N/GL422N lasers can withstand drops of up to 1 meter (3 feet) onto concrete and tripod tipovers up to 1.5 meters (5 feet). This strength, combined with full weatherproofing and dustproofing, reduces downtime and lowers repair costs over the life of the product.

Each GL412N and GL422N laser system now includes the advanced HL760 Digital Readout (DRO) receiver that provides automatic Grade Match - measures and displays the existing grade over unknown ground and eliminates time consuming and error prone calculations, and PlaneLok - automatically locks on to an existing elevation or vertical alignment point which eliminates all drift or possibility of error due to improper calibration or weather, and the unique "Fingerprint" function - receiver only accepts the beam from the laser it is paired with.

2-Way full fuction remote control allows grade changes to be made from anywhere on the job-site and has mask mode to eliminate interference from other crews running lasers on the job-site.

Spectra Laser Receiver Model No. CR700

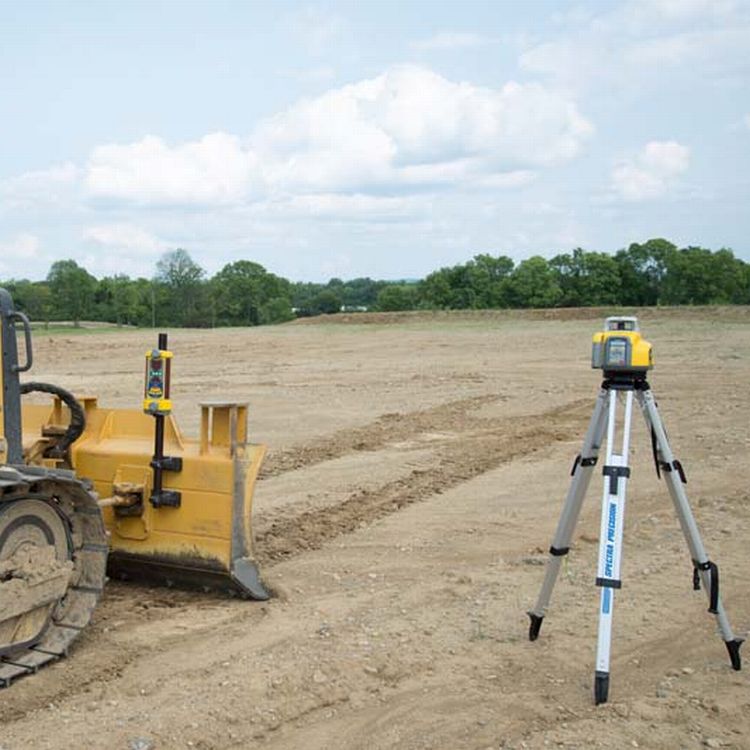

The CR700 can be either rod or machine mounted, making it ideal for a wide range of applications. Using the magnetic mount, the CR700 receiver is easily moved between backhoes, small excavators, box blades or skid steer loaders.

The CR700 uses the patented “light bar” technology incorporated in the HL family of Spectra Precision laser receivers. This unique technology provides more accurate and more consistent readings than traditional methods and has fewer electronic components resulting in the most rugged and reliable laser receivers available.

RC402N for total remote control

Program the exact percent of grade from .001% to 9.999%

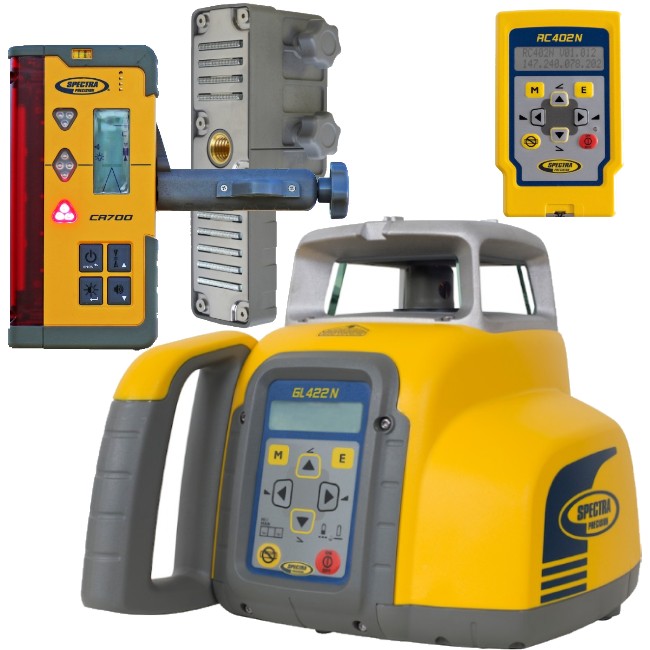

GL422N-14 Includes:

• CR700 Combination Receiver
• RC402N Remote Control
• NiMH Batteries
• 110v Battery Charger
• Jobsite tough carrying case

Features:

• Simplifies level, grade and vertical alignment setups
• Increases reliability, accuracy and durability
• Easy to transport, easy to carry, easy to store
• Energy-efficient design offers long battery life
• Highly durable design enables the GL412N/GL422N to survive a drop up to 1 m (3 feet) onto concrete
• Radio remote control offers access to all laser function from every jobsite place

Applications:

• Leveling concrete forms and footers
• General construction vertical alignment and plumb such as anchor bolt and form alignment
• Grading and excavating
• Concrete sections with runoff for sports fields, tennis courts and driveways
• Steep slope road embankments and ditch banks
• Parking garages, ramps and drainage
